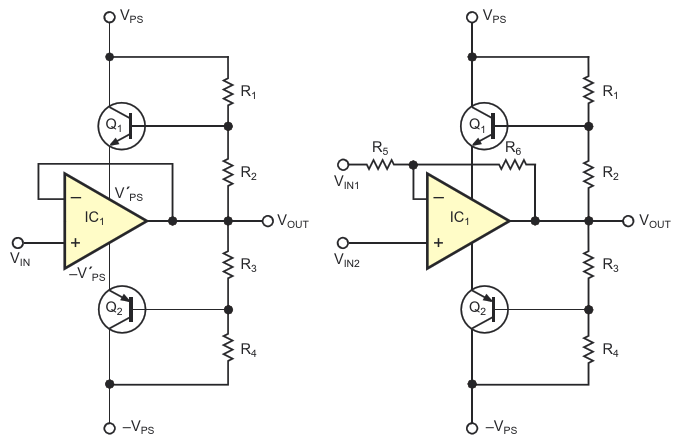

These simple circuits present the general methods of connecting the amplifier as an inverter or a follower to effect increased output voltage
| Authors | Yakov Velikson |
| Main Document | Article «Controlled power supply increases op amps' output-voltage range» |
| Description | Figure 1 |
| File Format / Size | PDF / 26 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Controlled power supply increases op amps' output-voltage range»
- Figure 1. These simple circuits present the general methods of connecting the amplifier as an inverter or a follower to effect increased output voltage
- Figure 2. Replacing the transistors with op amps reduces losses and increases the quality of the output voltage of the primary amplifier
- Figure 3. You can achieve the greatest voltage range by using separate power supplies - one for the normal voltages of the amplifier and one for the regulated part of the output voltage
