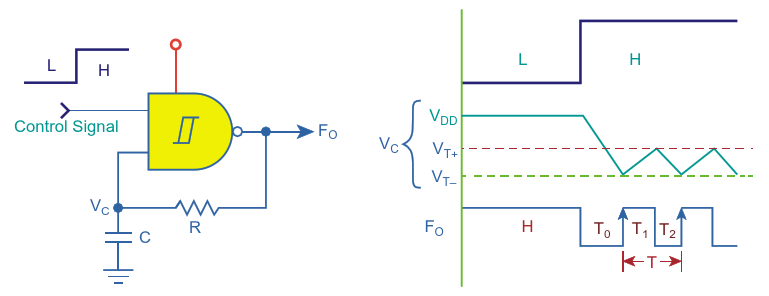

This is a classic logic oscillator. The timing diagram is to the right with time periods T0, T1, and T2

Authors	Ricardo Jimenez
Main Document	Article «Gated Oscillator Starts Without Delay»
Description	Figure 1
File Format / Size	PDF / 17 Kb
Document Language	English

Slices

This is a classic logic oscillator. The timing diagram is to the right with time periods T<sub>0</sub>, T<sub>1</sub>, and T<sub>2</sub>
