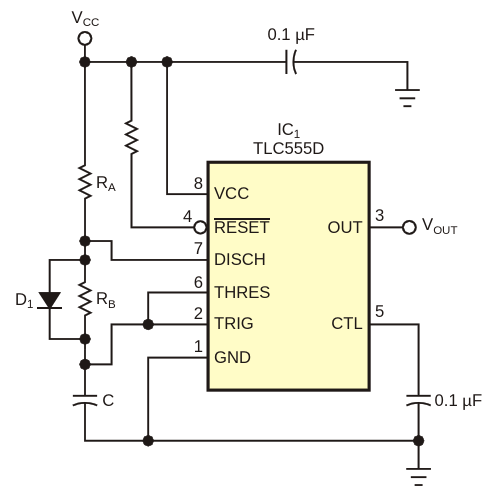

The simple addition of a bypass diode makes this timer circuit valid for low duty cycles
| Authors | Phil Rogers |
| Main Document | Article «Design low-duty-cycle timer circuits» |
| Description | Figure 2. |
| File Format / Size | PDF / 17 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Design low-duty-cycle timer circuits»
- Figure 1. . This classic 555-based timer is valid only for duty cycles greater than 50%
- Figure 2. . The simple addition of a bypass diode makes this timer circuit valid for low duty cycles
