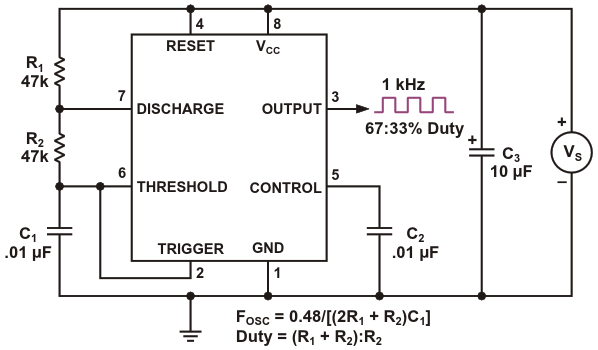

«Traditional two-resistor» 555 oscillator
| Authors | Stephen Woodward |
| Main Document | Article «Add One Resistor to Give Bipolar LM555 Oscillator a 50:50 Duty Cycle» |
| Description | Figure 1 |
| File Format / Size | PDF / 14 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Add One Resistor to Give Bipolar LM555 Oscillator a 50:50 Duty Cycle»
- Figure 1. «Traditional two-resistor» 555 oscillator
- Figure 2. New «three resistor» topology
