Diodes convert a single-coil relay driver to dual-coil use
| Authors | KC Yang |
| Main Document | Article «Adapt single-coil relay driver to dual-coil use» |
| Description | Figure 1 |
| File Format / Size | PDF / 10 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Adapt single-coil relay driver to dual-coil use»

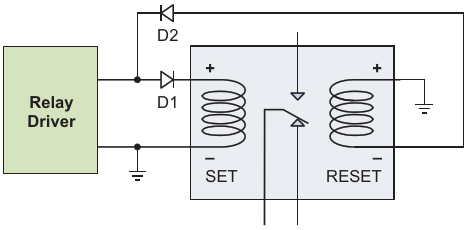

- Figure 1. Diodes convert a single-coil relay driver to dual-coil use
- Figure 2. Four diodes are needed to convert the single-coil signal for dual coil use when the coils share a common connection
- Figure 3. Testing the dual-coil relay using only one function generator and a high-voltage driver
