Adding undervoltage or overvoltage lockout threshold hysteresis with a switched (a) shunt resistor or current and (b) a series resistor
| Authors | Pinkesh Sachdev |
| Main Document | Article «Adding Hysteresis for Smooth Undervoltage and Overvoltage Lockout» |
| Description | Figure 4 |
| File Format / Size | PDF / 17 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Adding Hysteresis for Smooth Undervoltage and Overvoltage Lockout»
- Figure 1. Power supply undervoltage lockout using a resistive divider, comparator, and power switch
- Figure 2. Undervoltage and overvoltage lockout using a single resistive divider
- Figure 3. Adding undervoltage lockout threshold hysteresis with a resistor from the divider tap to the power switch output

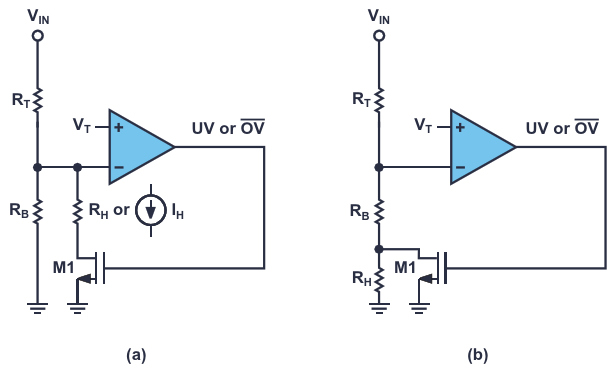

- Figure 4. Adding undervoltage or overvoltage lockout threshold hysteresis with a switched (a) shunt resistor or current and (b) a series resistor
