Three-level (3L) converter operation with D greater than 0.5
| Main Document | Article «Maximize power density with three-level buck-switching chargers. Part 1» |
| Description | Figure 4 |
| File Format / Size | PDF / 73 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Maximize power density with three-level buck-switching chargers. Part 1»
- Figure 1. Two-level (2L) buck switches and gate drive
- Figure 2. Three-level (3L) buck switches and gate drive
- Figure 3. Three-level (3L) converter operation with D less than 0.5

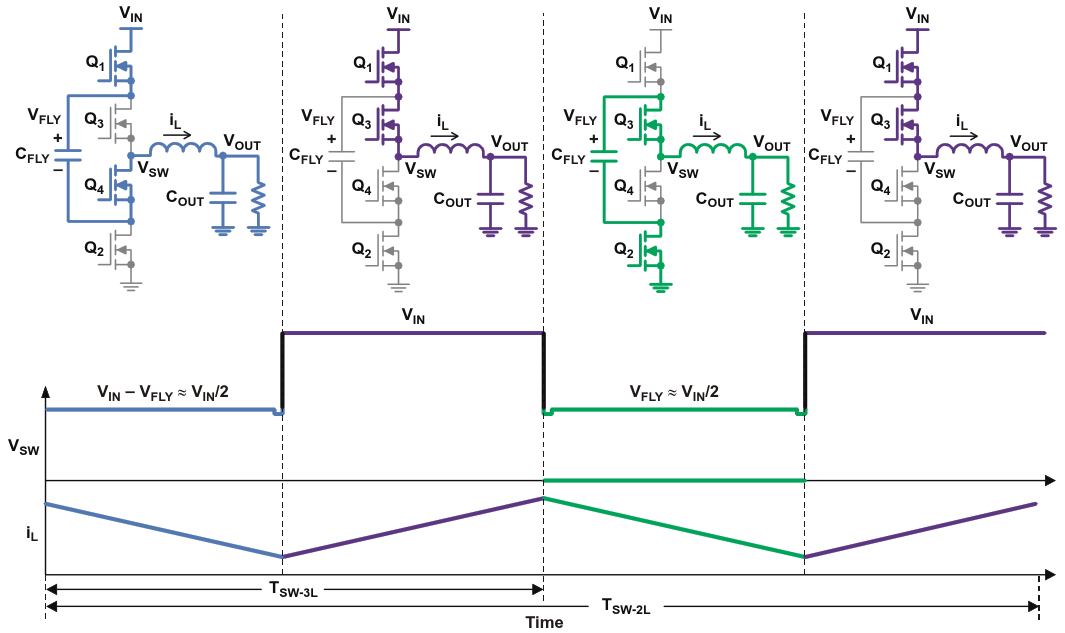

- Figure 4. Three-level (3L) converter operation with D greater than 0.5
