Guard rings. (a) Inverting and noninverting operation. (b) SOT-23-5 package
| Authors | John Ardizzoni - Analog Dialogue |
| Main Document | Article «A Practical Guide to High-Speed Printed-Circuit-Board Layout. Part 2» |
| Description | Figure 15 |
| File Format / Size | PDF / 26 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «A Practical Guide to High-Speed Printed-Circuit-Board Layout. Part 2»
- Figure 9. Layout differences for an op-amp circuit. (a) SOIC package, (b) SOT-23, and (c) SOIC with RF underneath board
- Figure 10. Op amp with low-distortion pinout
- Figure 11. PCB layout for AD8045 low-distortion op amp
- Figure 12. AD8099 distortion comparison - the same op amp in SOIC and LFCSP packages
- Figure 13. A microstrip transmission line
- Figure 14. Stripline controlled-impedance line

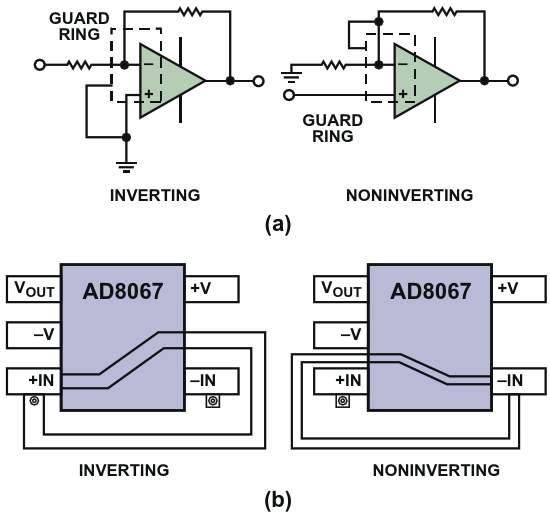

- Figure 15. Guard rings. (a) Inverting and noninverting operation. (b) SOT-23-5 package
