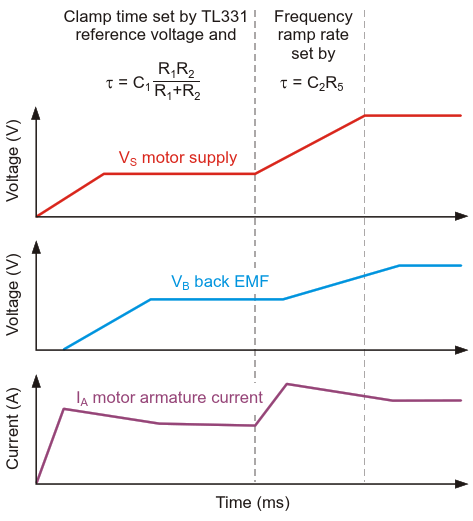

Clamp circuit states are shown vs. output voltage rise
| Authors | Ben Lough |
| Main Document | Article «AC/DC power-supply startup considerations for PMDC motor loads» |
| Description | Figure 5 |
| File Format / Size | PDF / 16 Kb |
| Document Language | English |
