This fully differential circuit compensates for voltage drop and phase shift in transmission lines
| Authors | Ron Shakery |
| Main Document | Article «Correct voltage drop and phase shift in transmission lines» |
| Description | Figure 1 |
| File Format / Size | PDF / 14 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Correct voltage drop and phase shift in transmission lines»

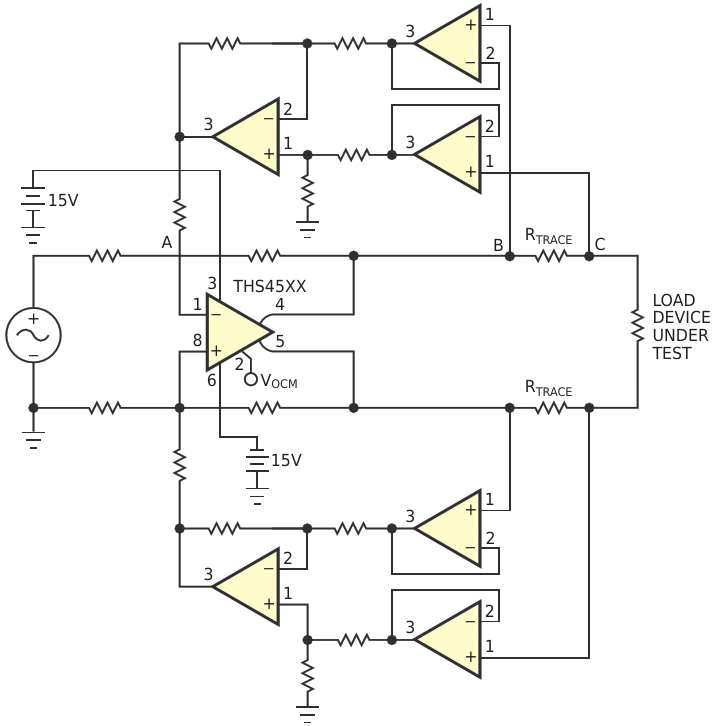

- Figure 1. This fully differential circuit compensates for voltage drop and phase shift in transmission lines
- Figure 2. This circuit represents a simulated transmission line inserted between points A and B of the circuit in Figure 1
- Figure 3. The phase-shift curves at Node B before the transmission line and at Node C after the transmission line show the effect of the feedback path in correcting the phase shift at the end of the transmission line
