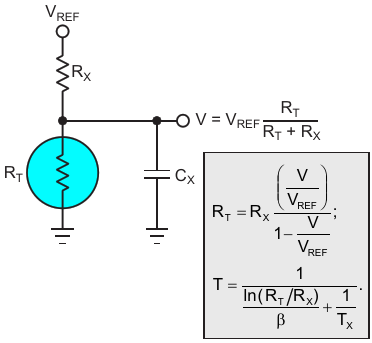

Basic thermistor passive excitation circuit: CX = optional noise reduction, perhaps 100 nF; RX = excitation resistor
| Authors | Stephen Woodward |
| Main Document | Article «Getting positive results from NTC thermistors with a simple passive interface» |
| Description | Figure 1 |
| File Format / Size | PDF / 10 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Getting positive results from NTC thermistors with a simple passive interface»
- Figure 1. Basic thermistor passive excitation circuit: CX = optional noise reduction, perhaps 100 nF; RX = excitation resistor
- Figure 2. RVDD limits max thermistor self-heating to PMAX
