Pseudologarithmic gain goes off the chart for codes below 24 and above 232
| Authors | Stephen Woodward |
| Main Document | Article «Keep Dpot pseudologarithmic gain control on a leash» |
| Description | Figure 2 |
| File Format / Size | PDF / 11 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Keep Dpot pseudologarithmic gain control on a leash»
- Figure 1. Amplifier with Dpot pseudologarithmic gain control that runs away at zero and 28

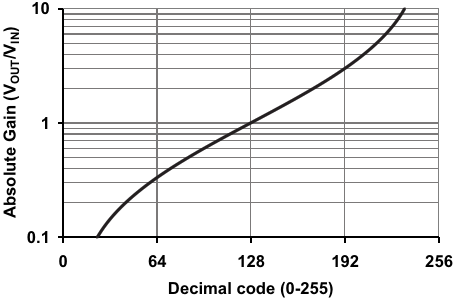

- Figure 2. Pseudologarithmic gain goes off the chart for codes below 24 and above 232
- Figure 3. Add two fixed resistors to bound the gain range to the recommended limits while keeping full 8-bit resolution
- Figure 4. Two added resistors limits gain to recommended 0.1 to 10 range without sacrificing resolution. The red curve shows the result
