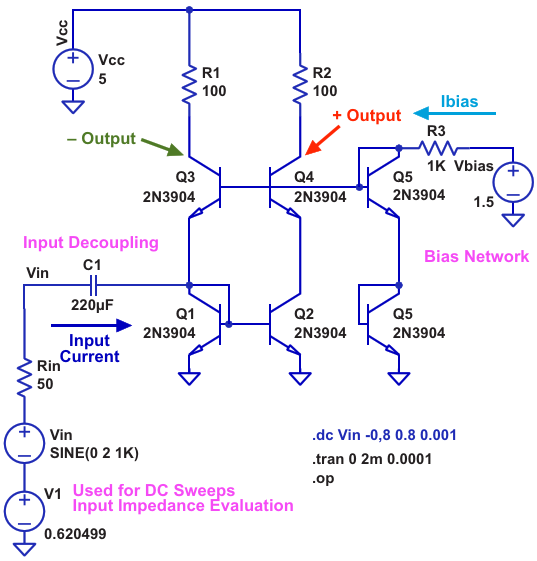

LTspice schematic of the micromixer topology with 6 BJTs arranged such that the output current from Q3 and Q4 are dependent upon input polarity
| Authors | Michael Wyatt |
| Main Document | Article «Single-supply single-ended input to pseudo class A/B differential output amp» |
| Description | Figure 1 |
| File Format / Size | PDF / 18 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Single-supply single-ended input to pseudo class A/B differential output amp»
- Figure 1. LTspice schematic of the micromixer topology with 6 BJTs arranged such that the output current from Q3 and Q4 are dependent upon input polarity
- Figure 6. A high dynamic range amplifier with additional resistors to help balance the input impedance variations over large input signal swings while still maintaining an equal collector current bias for each device as determined by IBIAS
