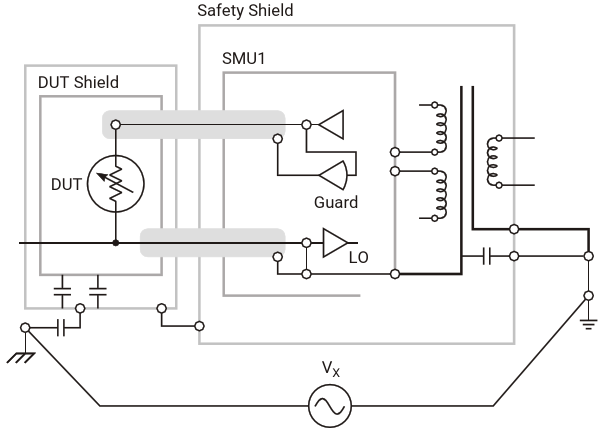

With a single SMU, grounding the DUT, either directly or through a capacitance, can channel ground current into the measurement LO lead
