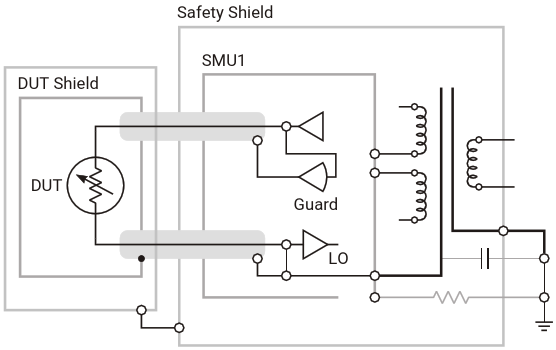

With a single SMU, grounding the shield with a resistor, at the instrument leads to no error current in the measurement LO lead
| Authors | Safety Grounding |
| Main Document | Article «Understanding grounding, shielding, and guarding in high-impedance applications. Part 2» |
| Description | Figure 5c |
| File Format / Size | PDF / 34 Kb |
| Document Language | English |
