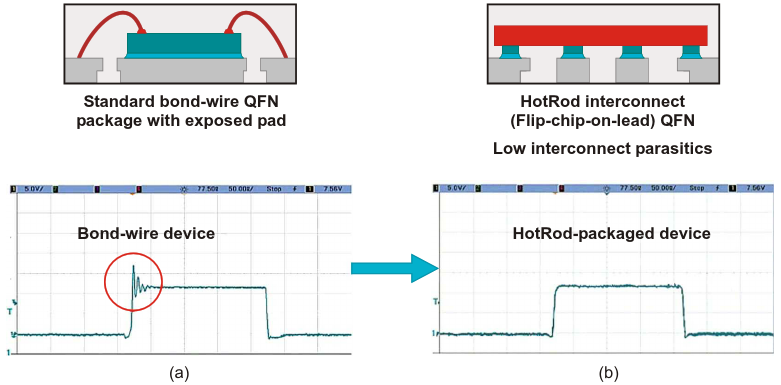

This typical QFN package uses bond wires to connect the die to an exposed pad where the power switch exhibits significant ringing (a). An improved package utilizes copper pillars and a flip-chip interconnection from the die to the lead frame, which elimin
