2-terminal current source
| Authors | James Bryant |
| Main Document | Article «Current-Output Circuit Techniques Add Versatility to Your Analog Toolbox» |

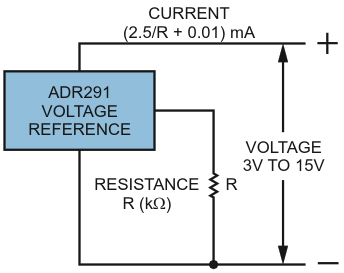

| Description | Figure 11 |
| File Format / Size | PDF / 13 Kb |
| Document Language | English |
