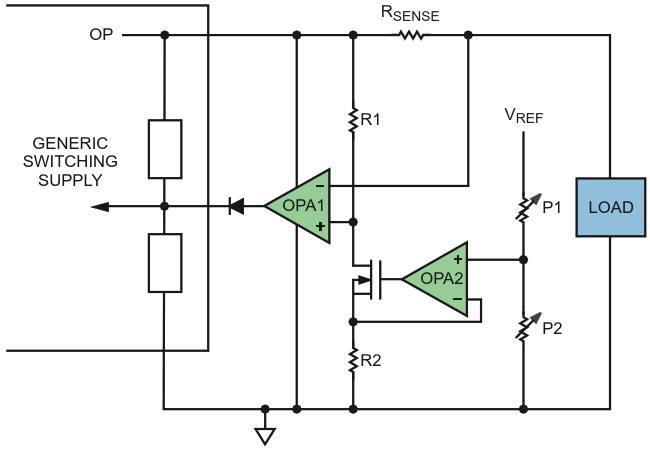

Black-brick switching supply modified for current-limit output
| Authors | James Bryant |
| Main Document | Article «Current-Output Circuit Techniques Add Versatility to Your Analog Toolbox» |
| Description | Figure 13 |
| File Format / Size | PDF / 22 Kb |
| Document Language | English |
