Regulator output programming with a DAC and the KISS network where V_OUT = (V_C) × (R₁/R₂) = = (2.5 to 0 V) × 4 = 0 to 10 V

Download PDF

Other Materials from the Main Document

• Article «Add one resistor to allow DAC control of switching regulator output»
• Figure 1. The (almost) universal regulator output programming network where V_OUT = V_SENSE(R₁/R₂ + 1) = = 0.8 V × (11.5 + 1) = 10 V

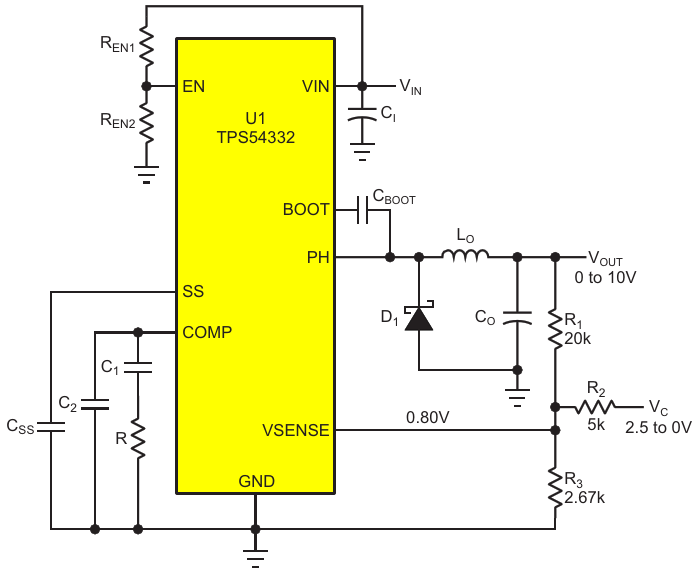

• Figure 2. Regulator output programming with a DAC and the KISS network where V_OUT = (V_C) × (R₁/R₂) = = (2.5 to 0 V) × 4 = 0 to 10 V
