12-Bit Incremental ADC Datasheet ADCINC12 V 5.3 (Cypress) - 10
| Manufacturer | Cypress |
| Description | The ADCINC12 User Module implements a 12-bit incremental A/D that generates a 12-bit, full-scale 2's complement output (+2047 to -2048 count range) with several input ranges to select from. Input voltage ranges, including rail-to-rail, may be measured by configuring the proper reference voltage and analog ground. It supports sample rates from 7.8 sps to 480 sps |
| Pages / Page | 23 / 10 — CY8C29xxx Typical Performance |
| File Format / Size | PDF / 394 Kb |
| Document Language | English |
CY8C29xxx Typical Performance
Text Version of Document
12-Bit Incremental ADC
CY8C29xxx Typical Performance

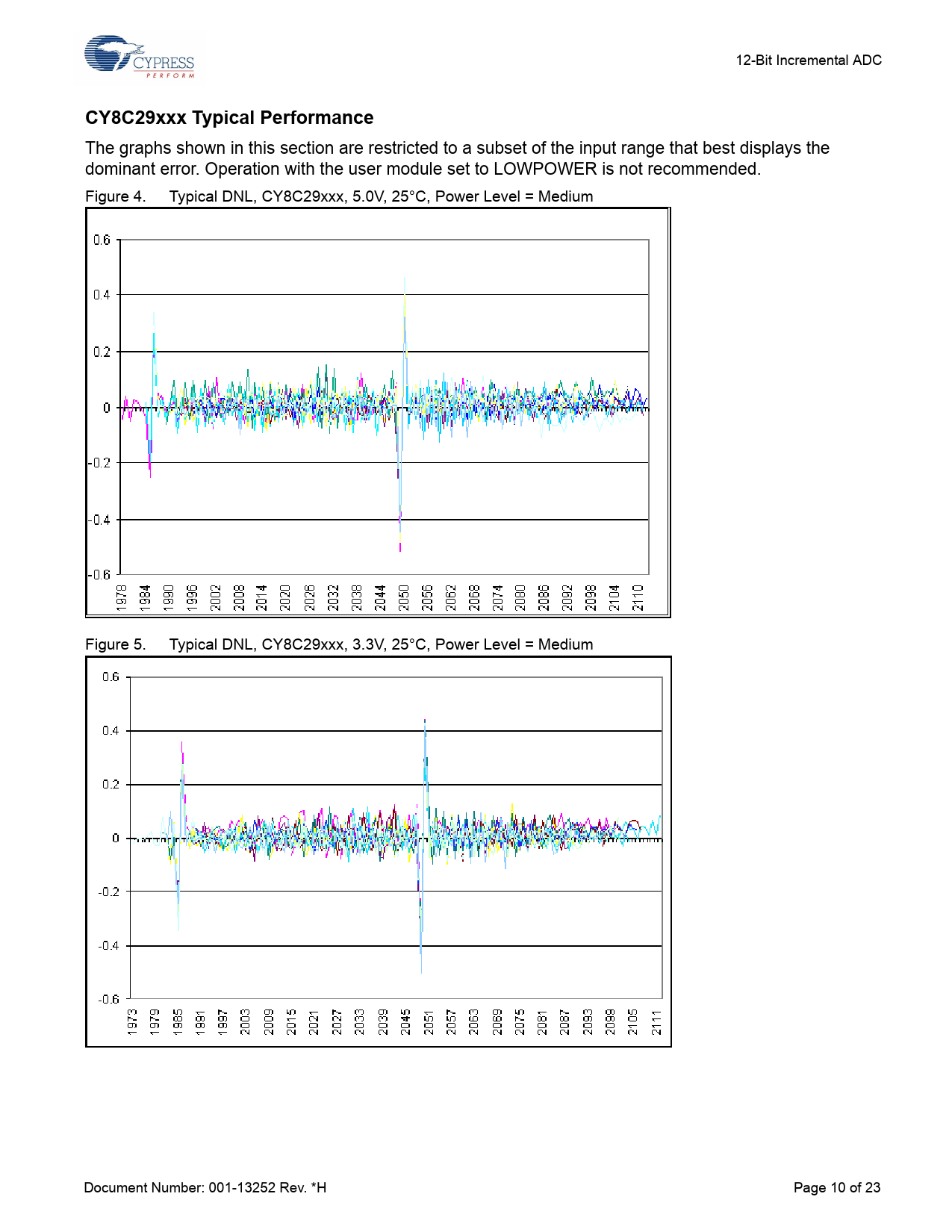

The graphs shown in this section are restricted to a subset of the input range that best displays the dominant error. Operation with the user module set to LOWPOWER is not recommended. Figure 4. Typical DNL, CY8C29xxx, 5.0V, 25°C, Power Level = Medium Figure 5. Typical DNL, CY8C29xxx, 3.3V, 25°C, Power Level = Medium Document Number: 001-13252 Rev. *H Page 10 of 23 Document Outline Features and Overview Functional Description Example 1 Example 2 Incremental ADC DC and AC Electrical Characteristics CY8C29xxx Typical Performance Placement Parameters and Resources Example 1 Example 2 Interrupt Generation Control Application Programming Interface ADCINC12_Start ADCINC12_SetPower ADCINC12_Stop ADCINC12_GetSamples ADCINC12_StopAD ADCINC12_fIsDataAvailable ADCINC12_iGetData ADCINC12_ClearFlag Sample Firmware Source Code Configuration Registers Version History
