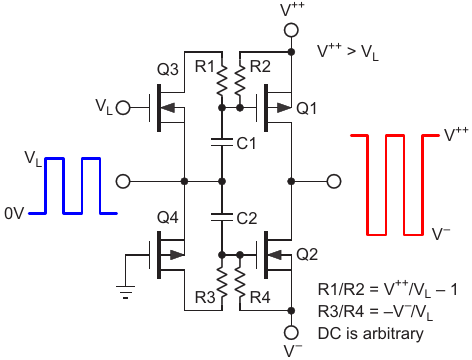

Grounded gate Q4 shifts logic signal to negative rail referred C2 and Q2
| Authors | Stephen Woodward |
| Main Document | Article «Driving CMOS totem poles with logic signals, AC coupling, and grounded gates» |
| Description | Figure 5 |
| File Format / Size | PDF / 12 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Driving CMOS totem poles with logic signals, AC coupling, and grounded gates»
- Figure 1. The simplest case of logic signal totem pole drive - direct connection works if V++ <= VL
- Figure 2. AC coupling can solve the problem of positive rail voltage mismatch if the control signal runs continuously
- Figure 3. Ditto for AC coupling and negative rail mismatch, too
- Figure 4. "Grounded" gate Q3 maintains C1 charge when logic signal stops
- Figure 5. Grounded gate Q4 shifts logic signal to negative rail referred C2 and Q2
