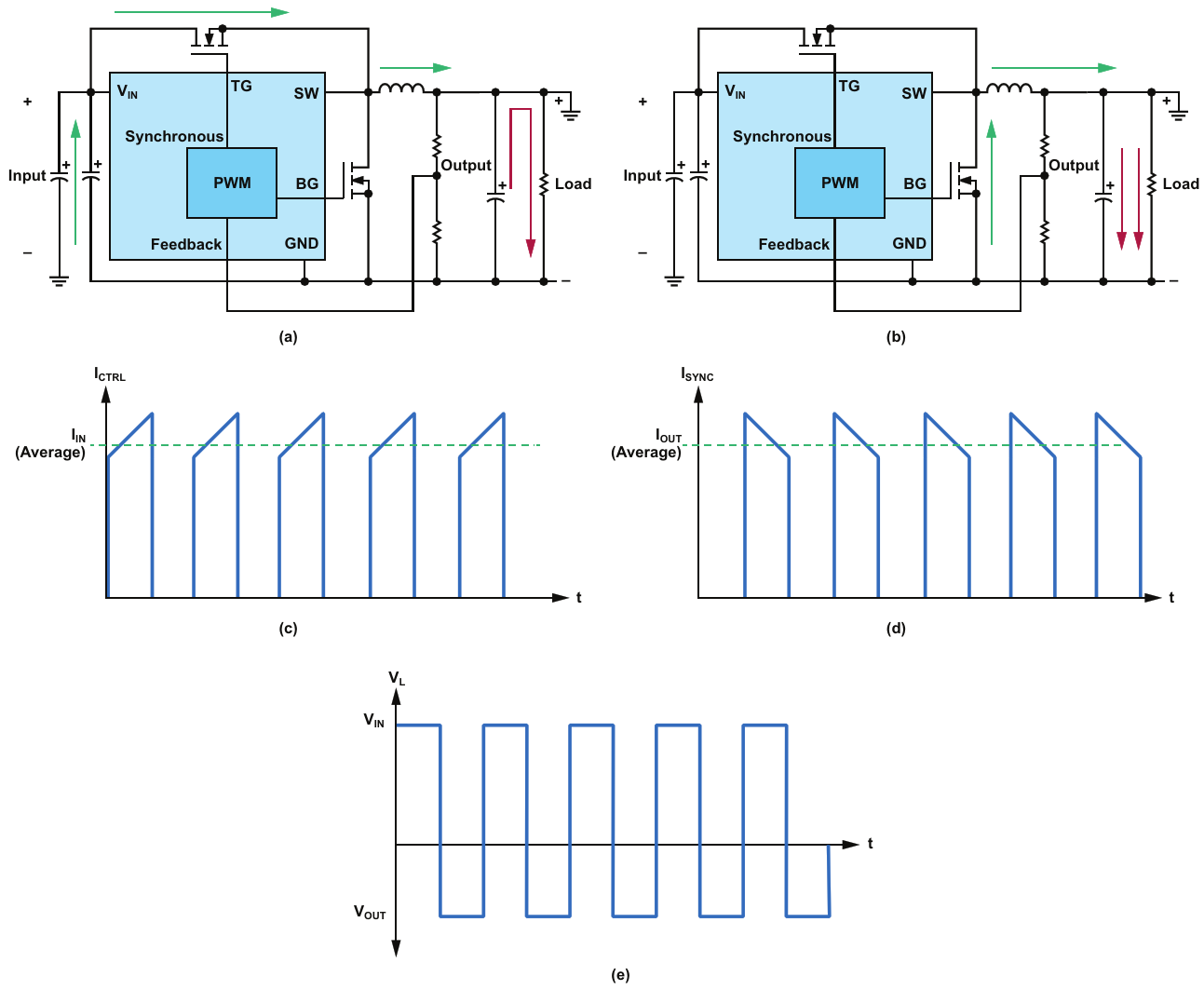

(a) Current flow during on-time, (b) current flow during off-time, (c) the current through the top/control MOSFET (ICTR), (d) the current through the bot/sync MOSFET (ISYNC), and (e) inductor voltage
| Authors | Anthony Serquiña, Jhun Rennel Sanchez |
| Main Document | Article «How to create a dual-output voltage rail with source and sink functionality for ATE applications» |
| Description | Figure 5 |
| File Format / Size | PDF / 20 Kb |
| Document Language | English |
