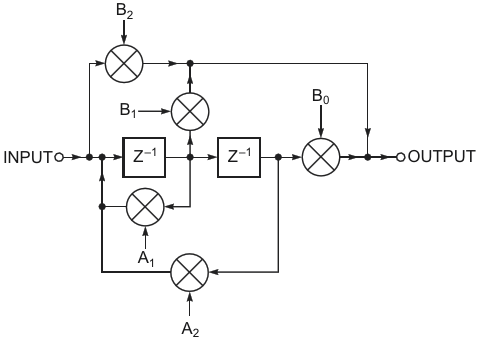

The transfer function for a second-order recursive digital filter has coefficient values that yield a lowpass, highpass, band-reject, or bandpass-transfer function
| Authors | David Báez-López |
| Main Document | Article «Transmission lines simulate digital filters in PSpice» |
| Description | Figure 1 |
| File Format / Size | PDF / 8 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Transmission lines simulate digital filters in PSpice»
- Figure 1. The transfer function for a second-order recursive digital filter has coefficient values that yield a lowpass, highpass, band-reject, or bandpass-transfer function
- Figure 2. In the PSpice circuit, the VCVSs (voltage-controlled voltage sources), E1 and E2, simulate voltage followers, and VCVSs E3 and E4 and the resistors that connect to them simulate summers
- Figure 3. In this PSpice simulation, the digital bandpass filter uses transmission lines as delay lines
