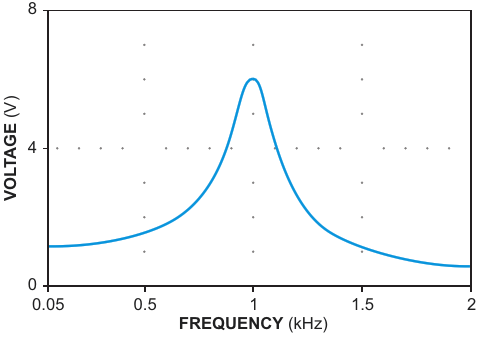

In this PSpice simulation, the digital bandpass filter uses transmission lines as delay lines
| Authors | David Báez-López |
| Main Document | Article «Transmission lines simulate digital filters in PSpice» |
| Description | Figure 3 |
| File Format / Size | PDF / 14 Kb |
| Document Language | English |
