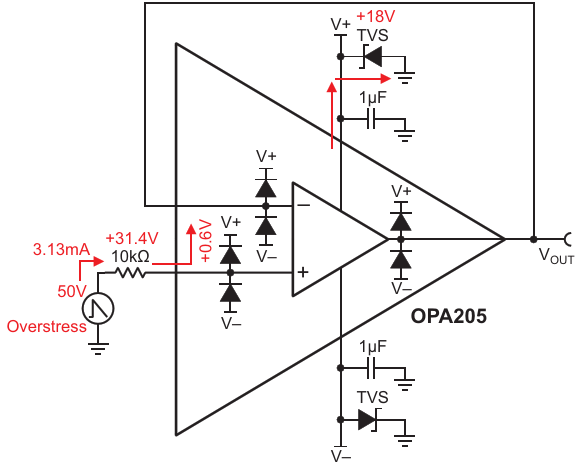

The electrical overstress (EOS) protection scheme shown uses the OPA205 precision op amp
| Authors | Arthur Kay |
| Main Document | Article «Op-amp input protection can be noisy» |
| Description | Figure 2 |
| File Format / Size | PDF / 15 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Op-amp input protection can be noisy»
- Figure 1. Op amps have input and output ESD protection diodes
- Figure 2. The electrical overstress (EOS) protection scheme shown uses the OPA205 precision op amp
- Figure 3. The JFET input protection shows the circuit operation under fault condition
- Figure 4. Here is a comparison between resistance region versus depletion region
- Figure 5. See P-channel JFET characteristic curve highlighting ohmic and saturation regions
