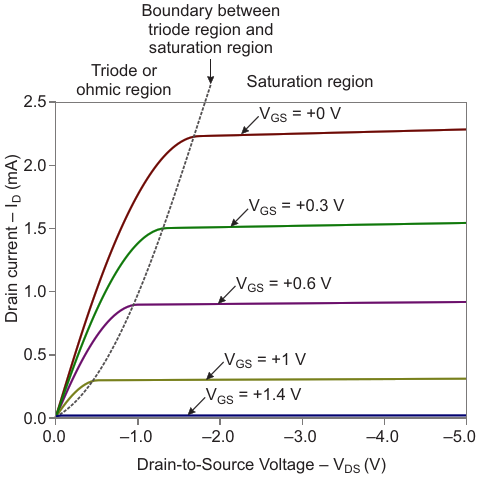

See P-channel JFET characteristic curve highlighting ohmic and saturation regions
| Authors | Arthur Kay |
| Main Document | Article «Op-amp input protection can be noisy» |
| Description | Figure 5 |
| File Format / Size | PDF / 12 Kb |
| Document Language | English |
